THE JOY FACTORY MagConnect AMPS Mount

MMU132

134,99 € tax incl.

This product is no longer in stock

/ Accessories and spare parts/MagConnect AMPS Mount

Product Information

Aluminum Alloy flat surface single arm mount only with AMPS hole pattern

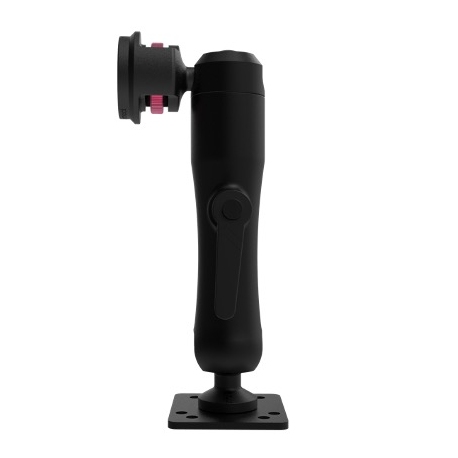

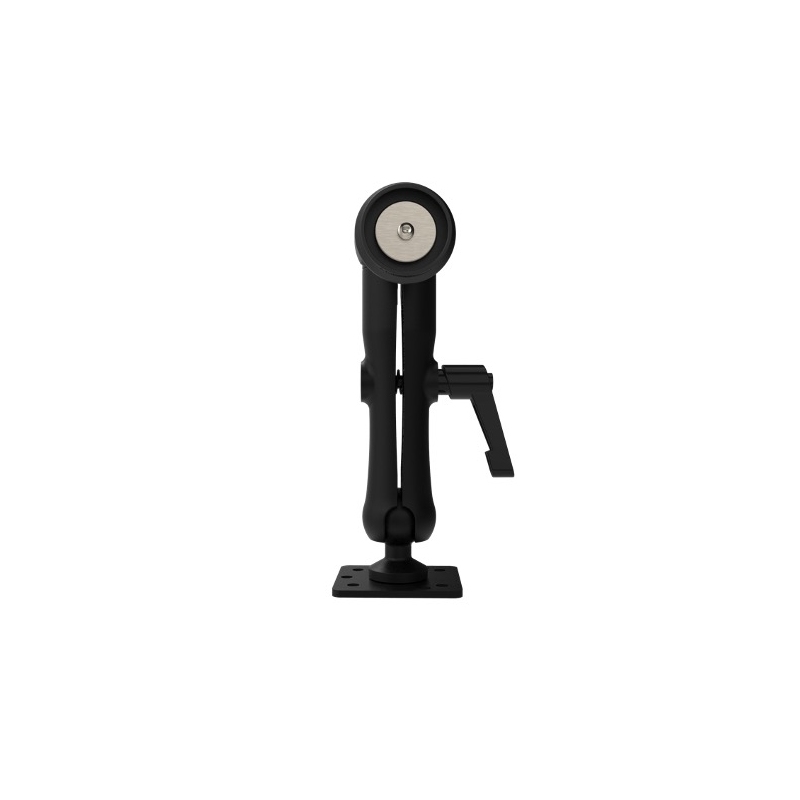

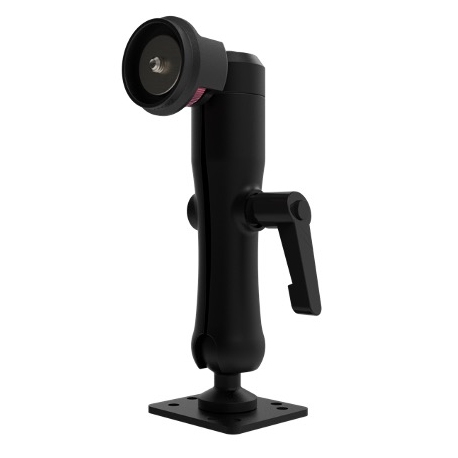

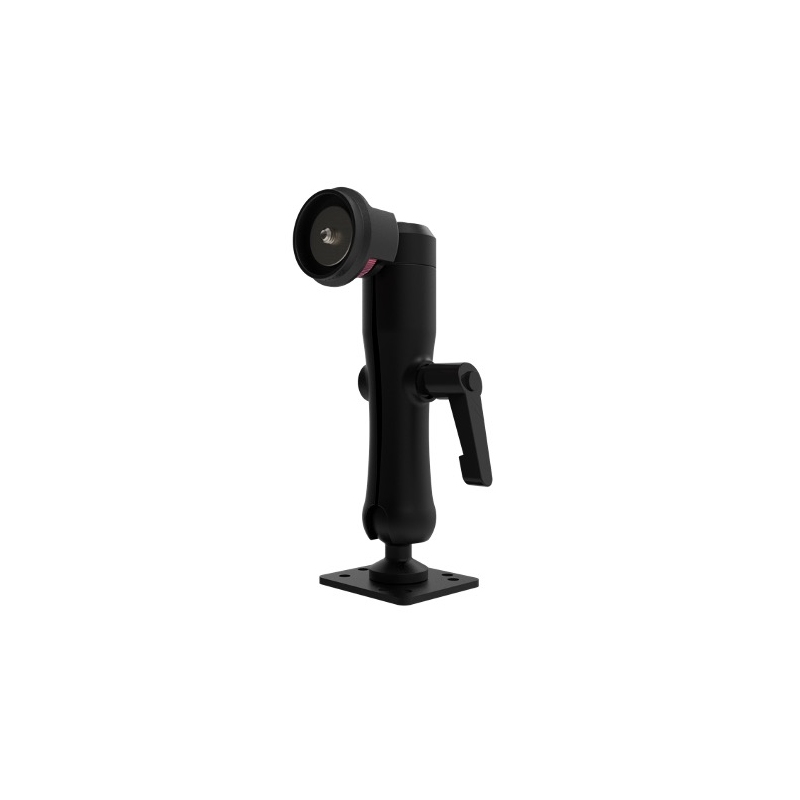

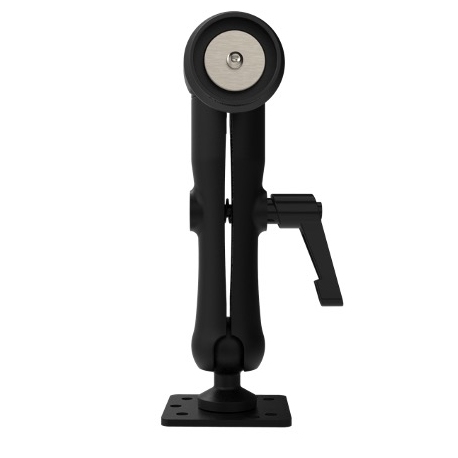

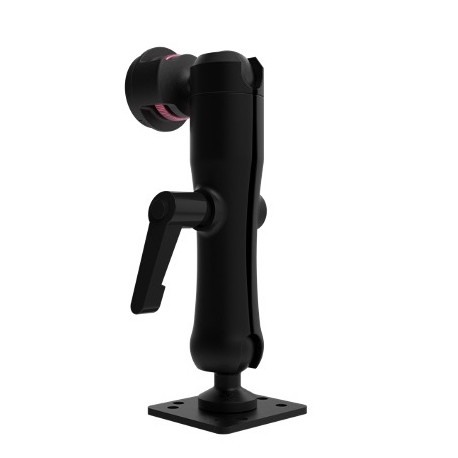

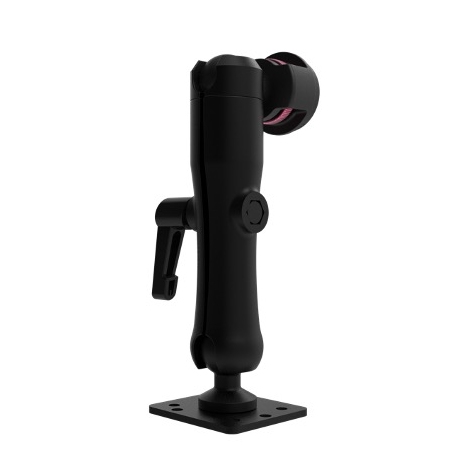

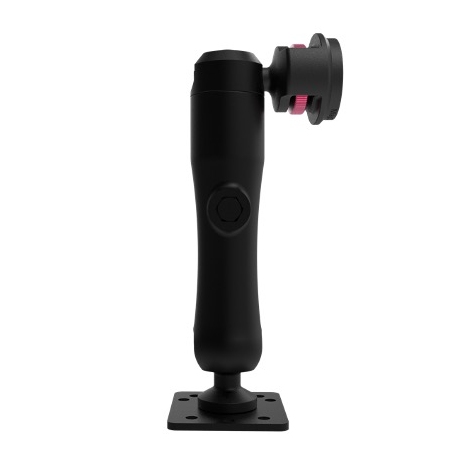

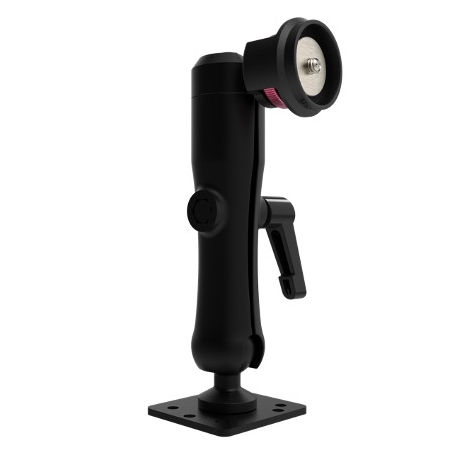

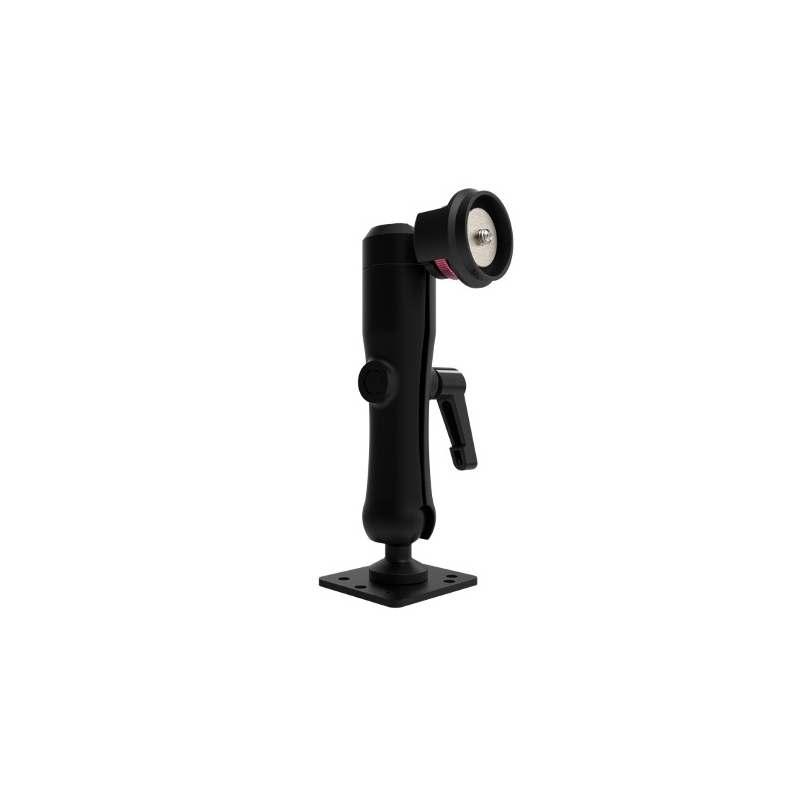

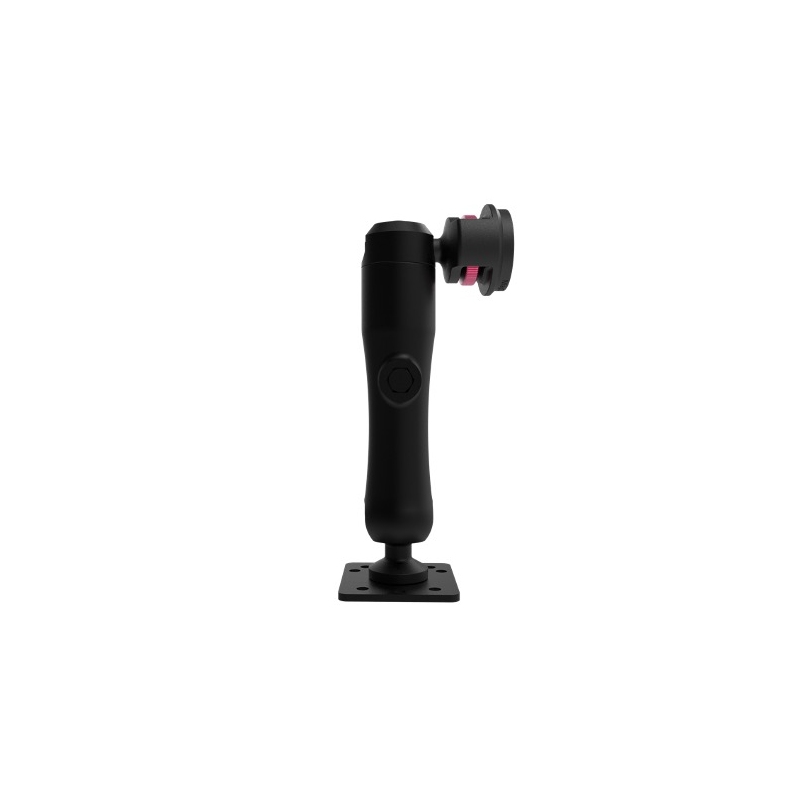

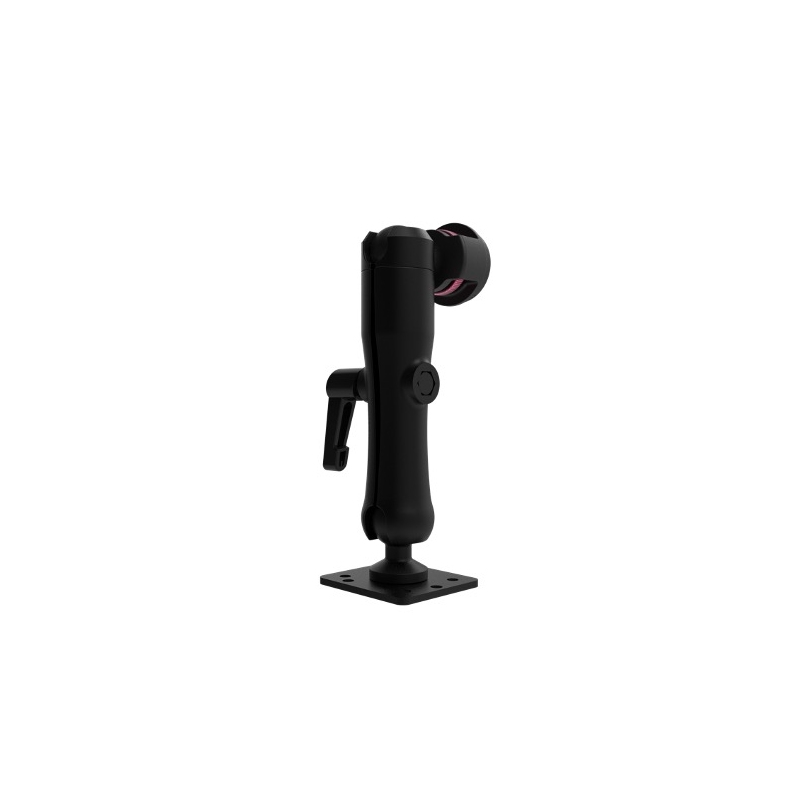

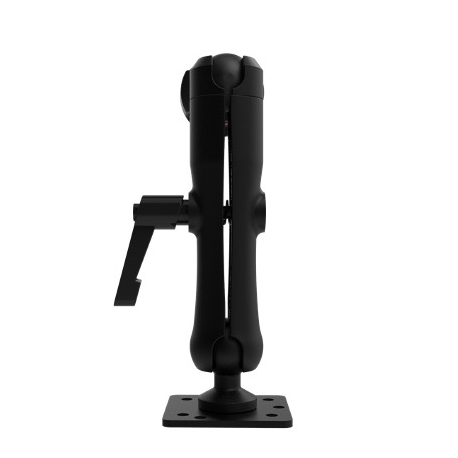

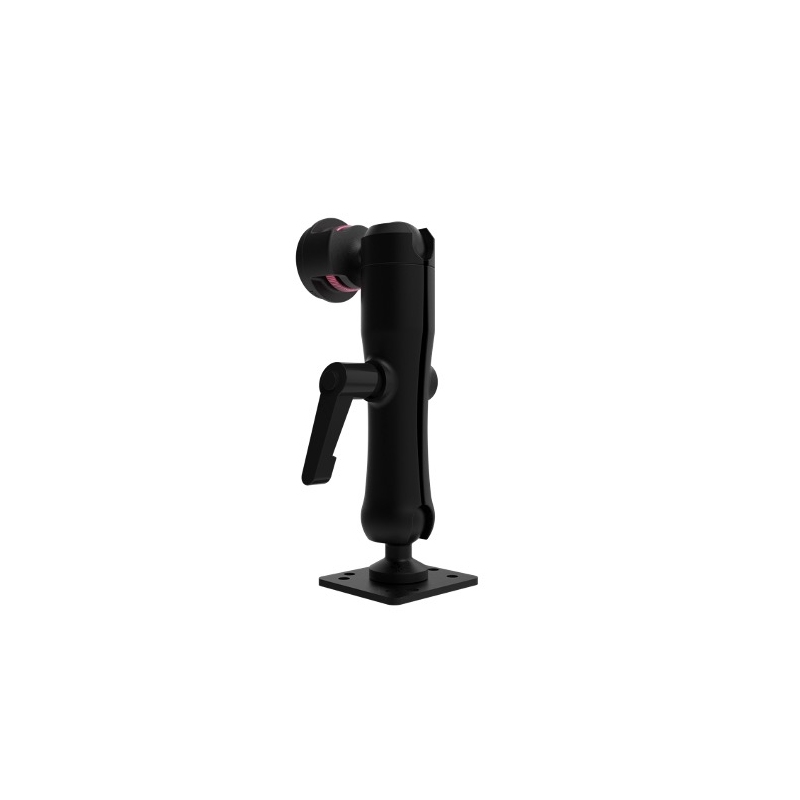

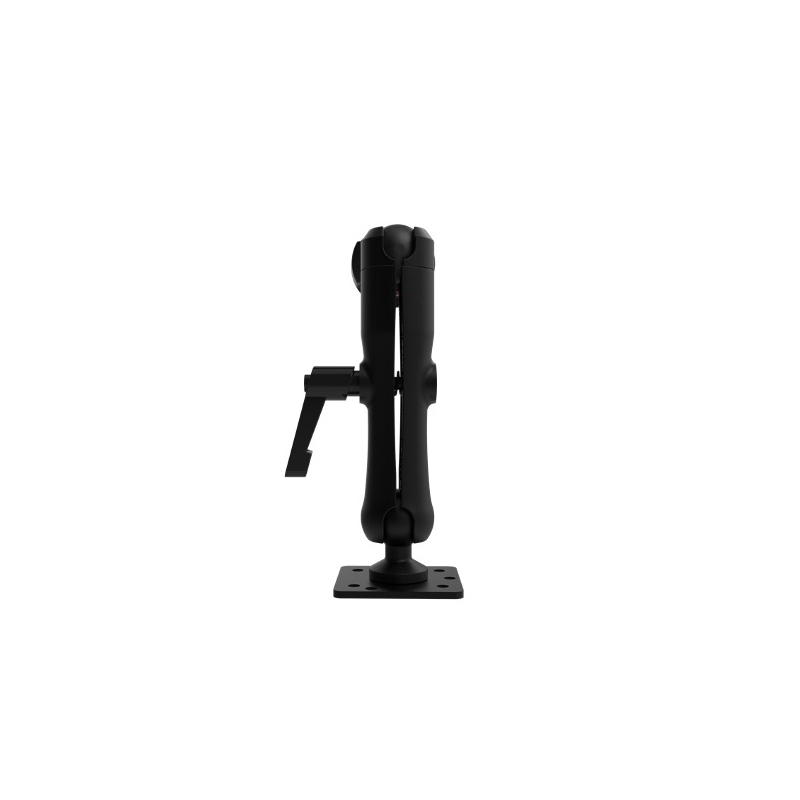

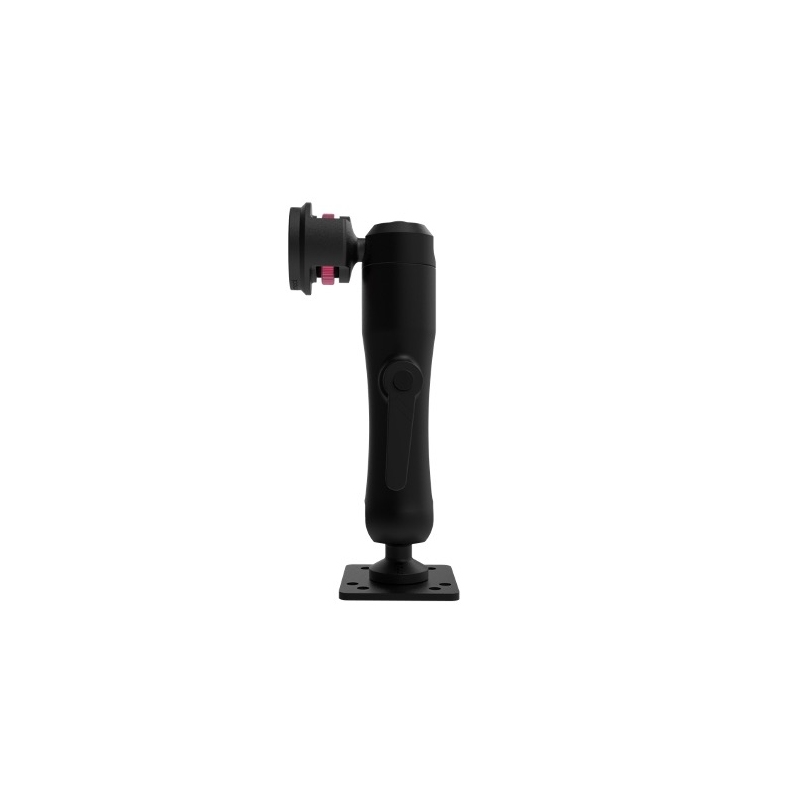

The MagConnect, 4-Hole AMPS drill base mounting pedestal is part of The Joy Factory MagConnect mount series. It features a metal AMPS drill mount base providing extra stability for utility and commercial vehicle use. This mount measures approximately 7.94" inches in height, and the mount shaft is made of a combination of steel and aluminum alloy. The arm of the pedestal rotates and swivels on both the top and the bottom of the mount, providing 360-degree rotation and the ultimate flexibility in positioning the tablet at virtually any angle.

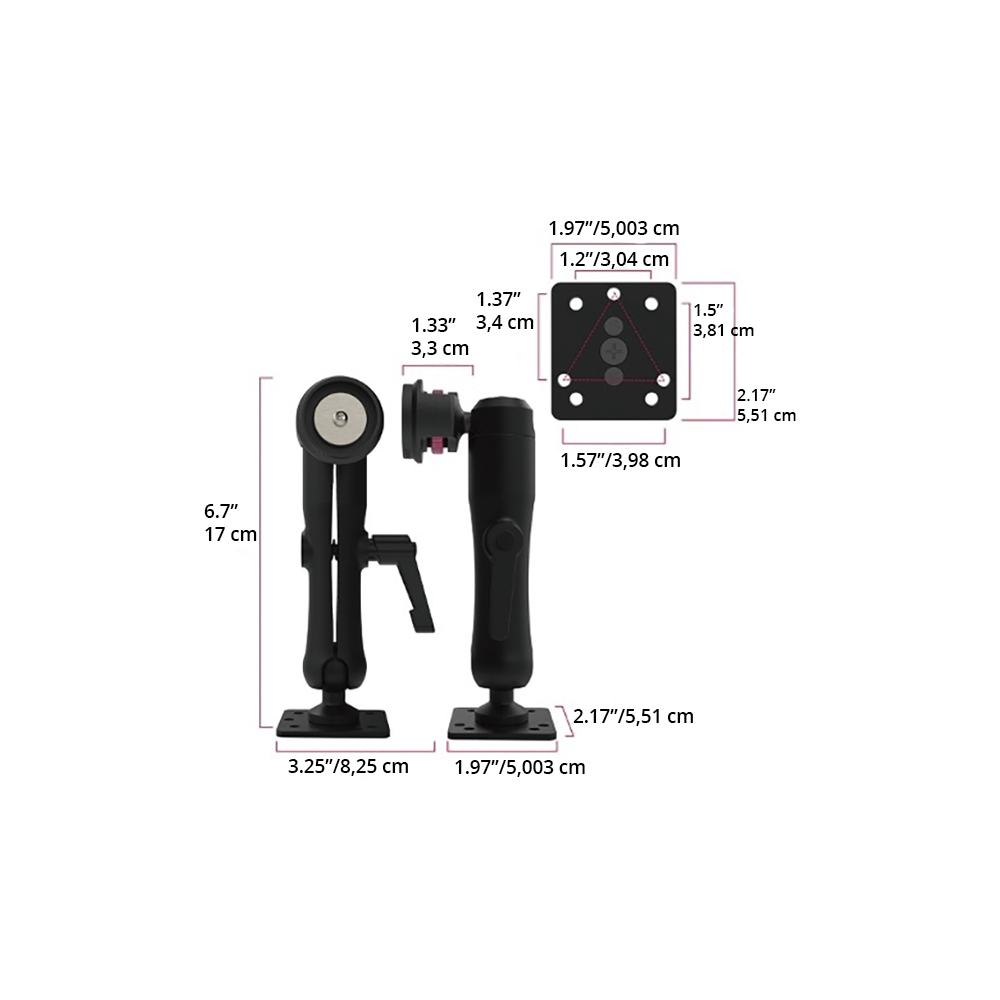

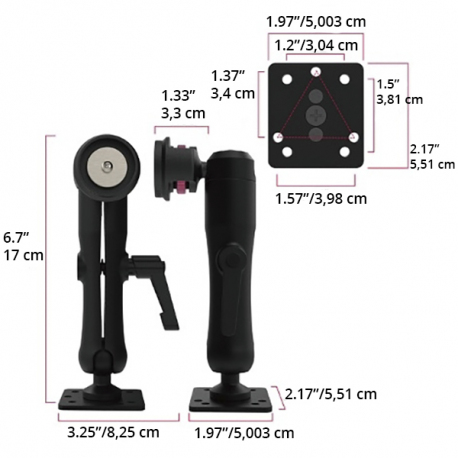

The mount is compatible with many devices especially for mobile tablets. It can be drilled into solid, flat surfaces, such as car dashboards or consoles as well as walls, tables, and workbenches. The AMPS mount pattern consists of 4-holes located in a rectangular pattern spaced at 1.2 by 1.5 (measured as the center-to-center distance between holes). This durable mount is also ideal for users such as truckers in transportation, first responders, construction, oil & gas and utility environments.

Product Specifications

Mount Specifications
Material: Carbon Fiber
Weight: 0.85 lbs
Total Span: 7.94"
Joints: 1" spherical joint at base x 1, 1" spherical joint at tablet connection x 1
Connection: MagConnect
Base Specifications: AMPS 4-hole drill hole pattern & 3-hole triangular drill hole pattern

Tags

Data sheet

Lenght (cm) 17.145
Width (cm) 2.54
Depth (cm) 2.54
Weight (kg) 0.453
COULEUR NOIR
Product type Tablets mount
UTILISATION BUREAU
Compatibility MagConnect
Fixing type AMPS
MAGCONNECT YES
WATERPROOF NO
PCB 1
Pays d'origine TW

No customer reviews for the moment.

Write a review

MagConnect AMPS Mount

MagConnect AMPS Mount

Aluminum Alloy flat surface single arm mount only with AMPS hole pattern

Download

Fiche technique EN MMU132

Download (1.04M)

Notice EN MMU132

Download (183.38k)
